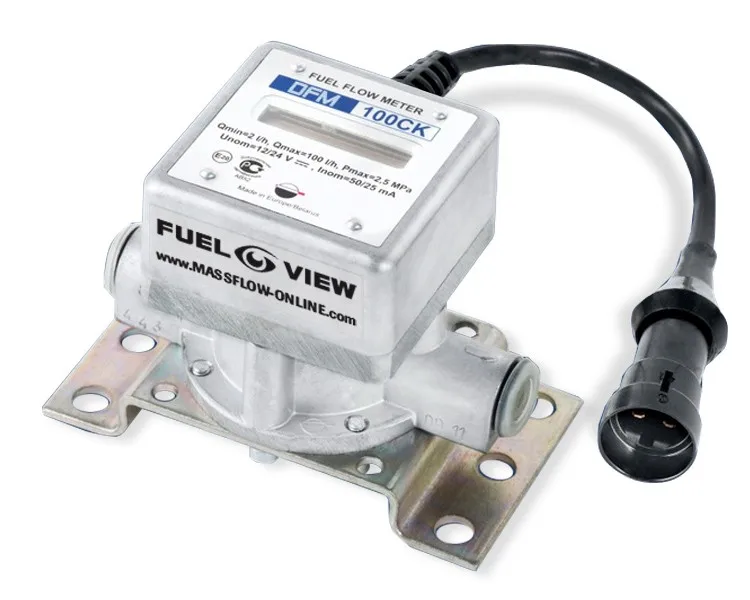

For monitoring fuel consumption FUEL-VIEW series of flow meters offer a compact, lightweight and very cost-effective solution for measuring fuel consumption and operating time. The FUEL-VIEW series can be installed on vehicles, tractors, river vessels or any mobile or fixed installations with diesel engines. Its unique features for protecting and preventing theft of fuel, the protection against overstatement of readings and intervention and the patented method of measuring different engine operating times makes FUEL-VIEW the best solution on the market today.
The FUEL-VIEW is a direct volumetric fuel consumption measurement device with ring-type measuring chambers. FUEL-VIEW flow meters with display and interface cable (DFM – CK models) offers standard two data readout options. Option 1. The configuration being a blind meter with a signal cable for pulse output (wired) and option 2. An embedded, battery powered display for local readout (LCD). Using the signal cable for pulse output a device that registers and indicates information may be needed. Therefor we offer a readout unit which can be found by the related products.
Features of fuel flow meter
- Pulse output for remote readout - Indication in: - Actual Flow(l/h) - Consumption in normal mode (l) - Consumption in overflow mode (l) - Strong metal molded case - Flow meter design provides a fuel flow even when measuring ring has stopped - Ease of mounting and operation - Mounting in any position - Engine operating time - Engine working time in "idling" mode
- Engine working time in "optimal" mode
- Measuring chamber temperature - Consumption in overload mode - Built-in fuel filter - Extended work range and accurate measurement ensured by digital processing of signal - Stable to vibrations and hydraulic shock - Wide clearing section minimizes hydraulic resistance of fluid flow - Sustainable product design: - Low battery indication - Low power consumption - Lightweight and compact
The fields of application for FUEL-VIEW are diverse: - Fuel consumption on: vehicles, river vessels, diesel generators and burners/boilers - Engine performance testing - Engine time monitoring to pro-actively signal maintenance - Real-time fuel monitoring and consumption reduction - Signalling fuel theft
If flowrate is higher than 2x nominal flowrate the "fuel consumption counter" does not count but the "tampering mode" counter counts.
Magnetic field interference
Special reed switch is activated when exposed to static magnetic field interference for more than 5 seconds and the time of interference is counted by "interference time" counter.
Supply power switched off
Embedded battery supplier autonomous operation of the flowmeter up to 2 years.
Disconnection from the fuel system
Installation kit elements have openings for sealing.

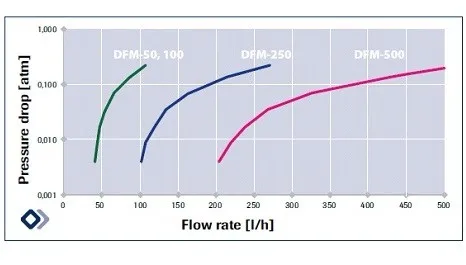

Diesel, fuel, petrol*, mineral oil. Other liquids with kinematic viscosity from 1.5 to 6mm2/sec are possible but maximal flow rate could be lower than the specifiedflow range and pressure drop over the instrument can be higher.
2 .. 25 bar(a)
-20 .. 60 °C
± 1% RD
95% at environmental temperature of 40 °C
With acceleration of 100 m/s2 in frequency range of 5 .. 250 Hz
Steady to fuel and lubricant materials
* FUEL-VIEW fuel flow meters are manufactured of petrol-proof materials. While working with petrol, national legislation safety measures must be applied and the declared lifetime of the measuring chamber of the flow meter is not guaranteed.

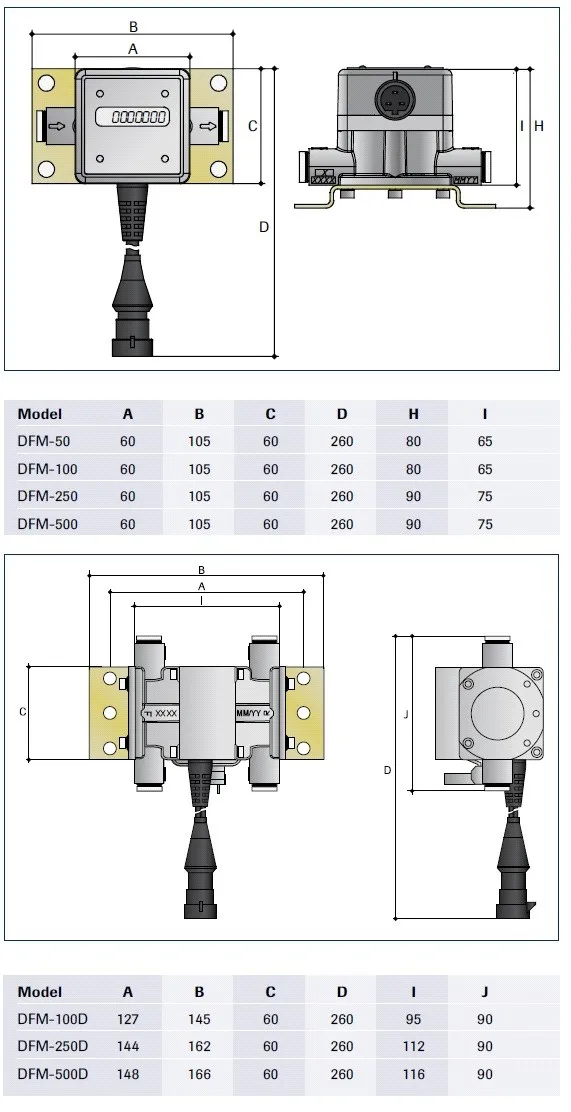

Each model has an R female M14 x 1.5 thread. Optional connection kits are available.
0 < Q < 0.1 Qnom
0.1 Qnom < Q < 1.5 Qnom
1.5 Qnom < Q < 2 Qnom
2 Qnom < Q
