Ultrasonic Flow Meter for Liquids

FOB Reference Price:Get Latest Price
$585.98 / Pieces | 1 Piece/Pieces Payment in advance sales condition (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Netherlands
Brand Name:
SONIC-VIEW
Model Number:
SVM-030
Type:
Ultrasonic Flowmeters - Liquid
Usage:
Measuring water and aqueous solutions
Medium:
Water and aqueous solutions
Flow Range:
1.5 - 30 l/min
Output:
4-20 mA, PNP pulse, Alarm
Supply Ability
Supply Ability:
Shipment: United Parcel Services (UPS)
Packaging & Delivery
Packaging Details
Shipping Weight: 0.6kg
Lead Time :
we ship within two days upon orderpayment

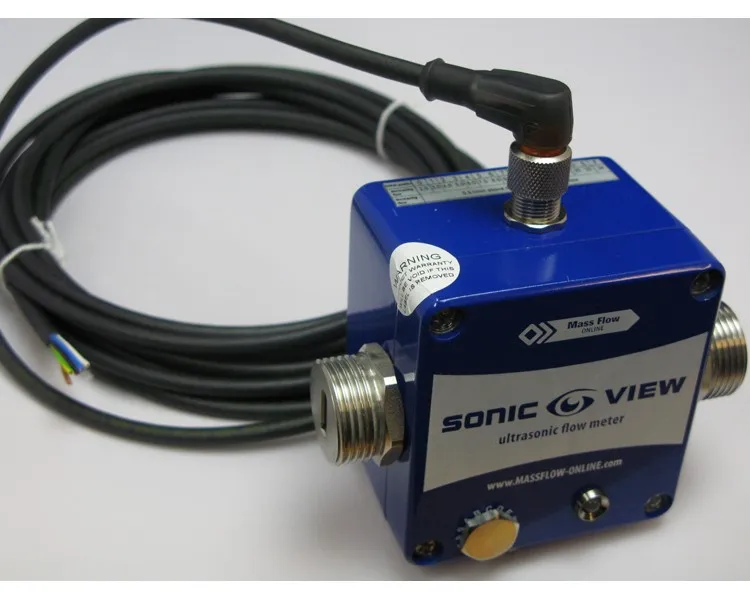

Product Description

SONIC-VIEW, the compact and solid state ultrasonic flow meter for measuring water and aqueous solutions. The compact, non-obstructive instrument operates on the basis of two ultrasonic transducers (transit time principle), mounted on the outer surface of a straight, stainless steel tube. The advantage of this method of metering is that the transducers will not be in contact with the medium. The flow meter does not contain any moving parts, causes virtually no pressure loss and can be mounted in any position, requiring no straight inlet or outlet runs. Its sensor housing is IP54 protected.

Features of Ultrasonic flow meter

- Make liquid flows visible by:
     - Pulse / frequency output
     - Analog output (4 .. 20 mA)
     - Blinking LED (red/green)
- No mechanical wear
- No moving parts
- Just one chemically resistant wetted part (stainless steel)
- Alarm output, can be set by rotary switch
- Ease of mounting and operation
- Independent of pipe and installation position

- Suitable for electrically non-conductive liquids, e.g. DI water
- Fast response
- Air detection
- Insensitive against pressure peaks and particles in the medium because of protected transducers
- Ideal solution for interference free operation combined with a long-life cycle
- Can be used in areas where flow sensors with moving parts cannot be applied
- Wide independence to the inlet and outlet pipes enable installation in compact machines with cramped confines

Advantages

- The ideal solution for interference free operation
- Meters have a long life cycle
- Can be used in areas where flow sensors with moving parts cannot be applied
- Insensitive against pressure peaks and particles in the medium because of protected transducers
- Wide independence to the inlet and outlet pipes enable installation in compact machines with cramped confines
- Both analog (4..20mA) and pulse output signals
- Alarm can be set easily by rotary switch and is indicated by an LED and alarm output signal
- Just one chemically resistant wetted part (stainless steel)

Flow Ranges
Model
Min
Max
Output signal starts
SVM-030
1.5 l/min
110 l/min
~ 1 l/min
Technical Specifications
Performance
Specifications
Flow Range
1.5 .. 30 l/min
Accuracy*
3 .. 30 l/min: ± 4% RD                                                                   1.5 .. 3 l/min: ± 10% RD
Signal output starting from
1 l/min
Max. flow rate
33 l/min
Reproducibility
1%
Medium
Water and aqueous solutions
Rangeability
1:20
Operating temperature
5 .. 60 °C
Nominal pressure
PN16
Diameter
DN 10
Process connection
3/4" BSP male thread
Flow / alarm indication
LED green/red
* Based on water 20..60°C at 5 l/min, adjustment 30°C at 3 and 27 l/min. All information is subject to change without notice.

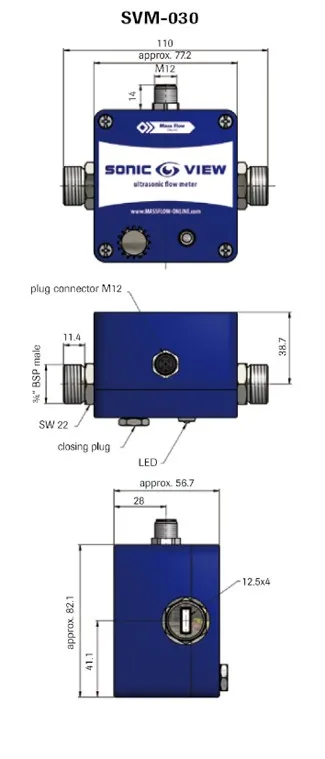

Mechanical
Specifications
Ingress protection
IP54
Housing
Aluminium casting
Wetted parts
Process connection
stainless steel 1.4404
Measuring pipe
stainless steel 1.4404
Electrical
Specifications
Frequency output signal
     Pulse rate / K-factor
855 pulses/l (resolution 1.2 ml/pulse)
     Signal shape
Square wave signal PNP open collector
     Signal current
Max. 100 mA, short-circuit-proof
     Max. pull-up voltage
30 VDC
Analog output signal
4 .. 20 mA, NAMUR NE43 compliant, max. burden is: (+U - 10V)/23 mA
Alarm output signal

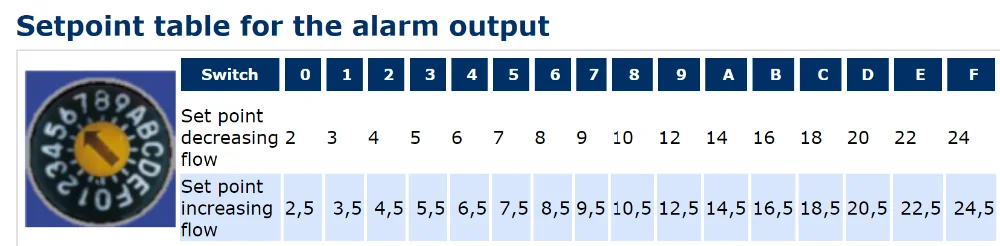

- Alarm in case of lack of flow or air in the pipe                     - PNP open collector, max. 100 mA short-circuit-proof         - 16 different setpoints selectable with rotary switch
Electrical connection
5 pin plug connector M12x1
Power supply
10 .. 30 VDC
Current consumption
Max. 80 mA
Electrical protection measures
Short-circuit proof (up to 30 V) and polarity protection (up to -30 V)
Pin assignment
PIN 1: +U
PIN 2: alarm output PNP
PIN 3: GND
PIN 4: frequency output PNP
PIN 5: analog output 4..20mA

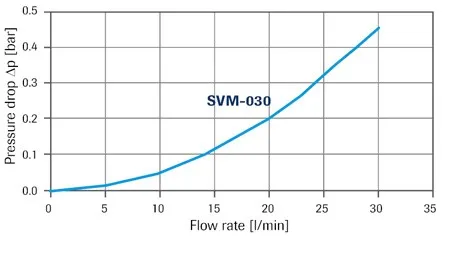

Pressure Drop
