MASS-VIEW Mass Flow Meter for Helium (MV-196-HE)

FOB Reference Price:Get Latest Price
$702.51 / Pieces | 1 Piece/Pieces Payment in advance sales condition (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Netherlands
Brand Name:
MASS-VIEW
Model Number:
MV-196-HE
Type:
Mass Flow Meters - Gas
Gas Type:
Helium (HE)
Flow Range:
0.2 .. 100 ln/min (SLM)
Accuracy:
± 2% RD for flow > 50% of max. cap; lower flows: ± (1% RD + 0.5% FS)
Output:
analog: 0 .. 5 Vdc digital: RS232 / RS485 (Modbus-RTU/ASCII)
Supply Ability
Supply Ability:
Shipment: United Parcel Services (UPS)
Packaging & Delivery
Packaging Details
Shipping Weight: 0.7kg
Packaging dimensions: 30x30x50 cm
Lead Time :
Fully stocked, despatch will be within 2 days.
Video Description
Product Description

The MASS-VIEW® series operate on the principle of direct thermal mass flow measurement. A major advantage of using this type of sensor is that the instruments measure direct mass flow, without the need for temperature and pressure correction.

Features of mass flow meter

1. Clear indication in:
    - Actual flow rate (bar graph and value)
    - Desired flow units
    - Type of gas
    - Totalised flow

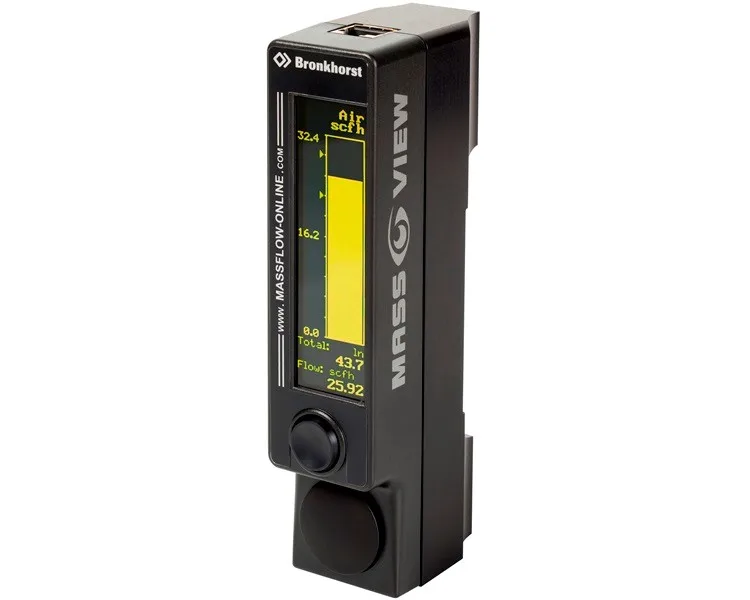

2. Bright, wide-angle OLED display
3. Free of parallax error
4. Virtually independent of temperature and pressure variations

5. Low pressure drop
6. Wide flow ranges
7. Fast response
8. High accuracy
9. Electronic output:
    - Analog (0 .. 5 Vdc)
    - RS-232 interface (with FLOWBUS)
    - Modbus-RTU/ASCII interface

10. Configurable password protection
11. Alarm and counter functions
12. Relays
13. Multi Range
14 Digitally calibrated
15 Free software tools

Pre-Installed Ranges
Ranges
Flow range (relative Air)
Range 1
1 ln/min .. 100 ln/min (SLM)
Range 2
0.5 ln/min .. 50 ln/min (SLM)
Range 3
0.2 ln/min .. 20 ln/min (SLM
Range 4
0.2 ln/min .. 10 ln/min (SLM)
Technical Specifications
Performance
Specifications
Accuracy
± 2% RD for flow > 50% of max. capacity                                ± (1% RD + 0.5% FS) on lower flows
Repeatability
< 0.2% FS typical
Pre-installed gases
He
Rangeability
up to 1:100
Operating pressure
0 .. 10 bar(g) / 0 .. 150 psi(g)
Pressure coefficient
0.2% / bar typical at Air
Operating temperature
0 .. 50°C (32 .. 122°F)
Temperature coefficient
Zero: <0.1%FS/°C, Span: <0.2%RD/°C
Attidude sensitivity
< 0.1% FS
Response time (t63%)
2 s
Notes:                                                                                                                                                                                                         1. Mass flow units ln/min and SLM refer to normal operating conditions, i.e. 0°C (32°F) and 1013 mbar (14.7 psi)             2. Technical specifications are based on Air at maximum FS                                                                                                         3. All specifications subject to change without notice

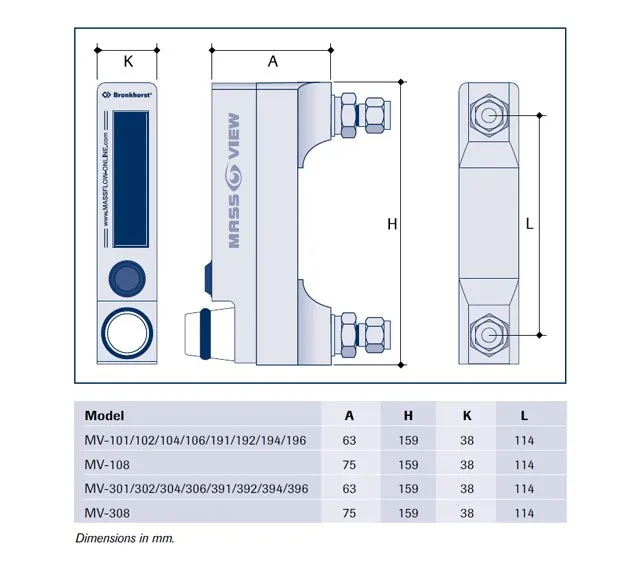

Mechanical
Specifications
Materials (wetted parts)
Aluminium, Viton
Gas connections (in/out)
G 1/4" BSPP female
Electrical
Specifications

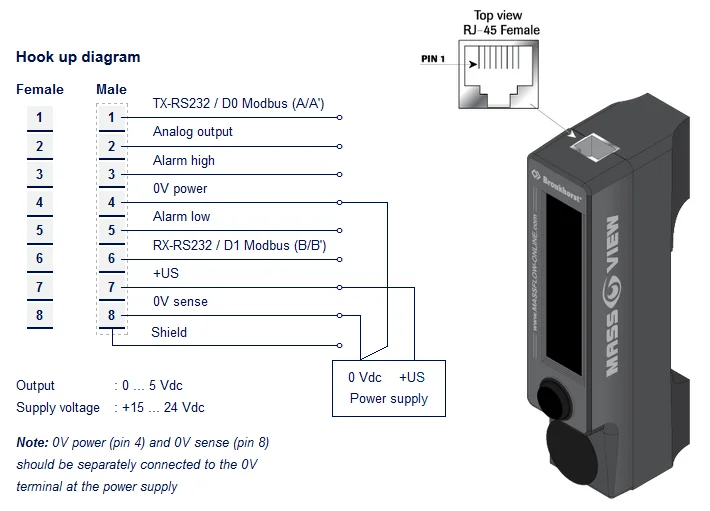

Electrical connection
8-pin RJ-45 modular jack
Output
Analog: 0 .. 5 Vdc                                                                        Digital: RS232 / RS485 (Modbus-RTU/ASCII)
Required supply voltage
15 .. 24 Vdc (± 10%)
Power consumption
Approx. 135 mA
Min. and max. relay contracts
Switching current 0.5 A, 24 Vdc                                              One side grounded (0 Vdc power)
Safety
Specifications
Test pressure
21 bar (a) / 300 psi (a)
Ingress protection
IP-50
Leak integrity (outboard)
< 1 x 10-9 mbar l/s He
EMC
EU declaration

Applications

1. Welding (welding gas monitoring)
2. Leak measurements (quality)
3. Measurements of gas consumption

4. Test equipment (production maintenance)
5. Local preparation of a gas mixture
6. Flow rate monitoring (laboratories)

7. Cost centre billing
8. Analytical equipment

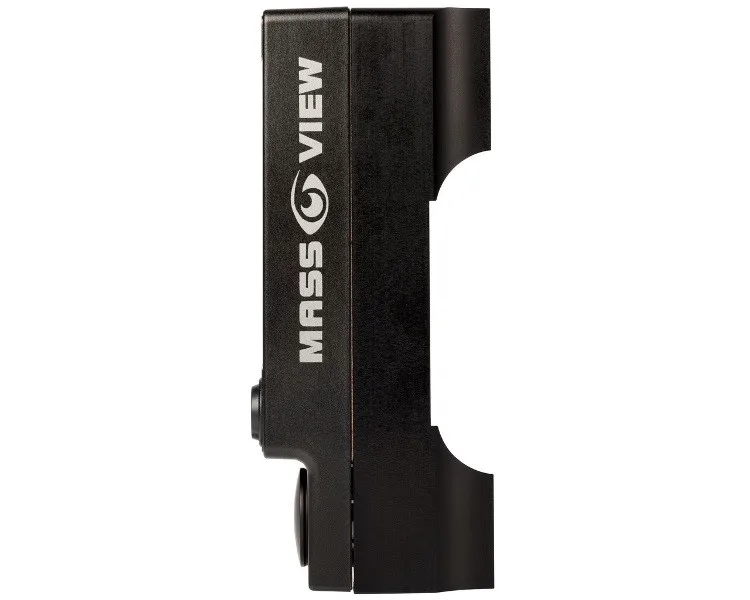

Products Show

Display menu

The 4-way button with center push gives access to a user-friendly menu, e.g. for zero function, for selection of pre-installed gases in pre-installed ranges, setting of engineering units, alarm functions (minimum/maximum/counter limit) and counter functions. Password protection is provided to prevent unauthorizes changes. Above overview of the MASS-VIEW® menu functions illustrates the great versatility of this product line.

Our Service

Customer benefits

- High quality products
- Clear competitive pricing
- Fast delivery
- 24 / 7 open for business
- Highly efficient purchase channel including order tracking
- Easy product selection and ordering
- After Sales Service
- Repair Service & Replacements
- Calibration Service
- Field & Maintenance Service
- Modernisation Service
- Remote Support Service

Our Company

Head office


Production process


Our warehouse


Our team


Packing & Delivery

Orders are shipped from Monday through Friday. Weekend delivery is not available. Products will be sold from stock, unless otherwise stated in the purchasing process. You will be notified when an item is not in stock which will introduce a delay in the delivery time. We do not partially ship orders so when one required item is in stock but another is on a non stock lead time then you should split the order. Once your product(s) has shipped, you will receive a shipment notification via email from our shipper United Parcel Services (UPS). In this email, you will find the tracking number of the shipment.

Delivery Details : ships in 1 - 2 days                                                                                                                                                              Packaging dimensions: 30x30x50 cm                                                                                                                                                           Shipping Weight : 0.7kg
Our Certifications

Calibration certificate

The Bronkhorst Calibration Centre is accredited by the Dutch Accreditation Council (RvA) under registration number K 127. Herewith is
certified that our laboratory’s Quality Assurance system, calibration
methods and technical competences have been inspected and audited and meet all necessary requirements.

Quality Management System certificate

Bureau Veritas Certification declares that the Quality Management
System of Bronkhorst High-Tech B.V. organisation has been audited
and found to be in accordance with the requirements of the
managment system standards.

FAQ

Q: How long is your delivery time?

A: Our average delivery time is 48 working hours. This means when the order is placed and paid, the order will be dispatched within 48 working
hours. The status of your order can be tracked in your account. Please check the availability which is displayed at every product page. You will
be warned when there is insufficient stock which can lead to a delay in the delivery.

Q: What payment methods do you offer?

A: Mass Flow ONLINE offers several payment methods. Payment methods for customers who are able to purchase and pay at the sametime we offer the following real time payment methods:
- Verified by VISA
- Mastercard® SecureCode™
- American Express
- PayPal
- iDEAL (only in The Netherlands)
For customers who have seperate purchase and payment processes, we offer an alternative:
- Wire transfer
- Bank transfer
- T/T transfer
- Money transfer
First you start the purchase process, select wire payment (bank transfer), and finalize the purchase process. The status of your order is waiting
for payment. You will receive an order acknowledgement within a minute. In this order acknowledgement, all our bank details are specified
(bank account number, bank name and address, Swift Code, BIC). This order confirmation contains a link to a detailed invoice, enabling your
finance payment department to arrange pre-payment. When payment is received, the status of your order is updated to Paid. You will be notified by e-mail.

Q: What is meant by ln/min?

A: Mass flow should actually be expressed in units of weight such as g/h, mg/s, etc. Most users, however, think and work in units of volume. No problem, provided conditions are agreed upon, under which the mass is converted to volume. Normal conditions (ln/min): a temperature of 0 °C and a pressure of 1013.25 hPa(a) are selected, and these reference conditions are indicated by the underlying letter “n” in the unit of volume
used. The direct thermal mass flow measurement method is always based on these reference conditions unless otherwise requested.

Q: Can MASS-VIEW be used at sub-atmospheric pressure conditions?

A: Our MASS-VIEW mass flow meters are specified from 0 bar(g), below 0 bar(g) (sub-atmospheric pressure condition) we expect a lower accuracy than specified in the datasheet.
