MAG-VIEW Electromagnetic flowmeter for conductive liquids

FOB Reference Price:Get Latest Price
$531.60 / Pieces | 1 Piece/Pieces Payment in advance sales condition (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Netherlands
Brand Name:
MAG-VIEW
Model Number:
MVM-002-Q
Type:
Magnetic Inductive Flow Meter
Flow Range:
0.1 .. 2 lpm
Accuracy:
± 1%RD
Medrium:
Water and other condictive liquids
Repeatability:
1%
Process connection:
G3/8'' BSP male thread
Output:
Pulse Output
Supply Ability
Supply Ability:
Shipment: United Parcel Services (UPS)
Packaging & Delivery
Packaging Details
Shipping Weight: 0.7kg
Lead Time :
Fully stocked, despatch will be within 2 days.
Product Description

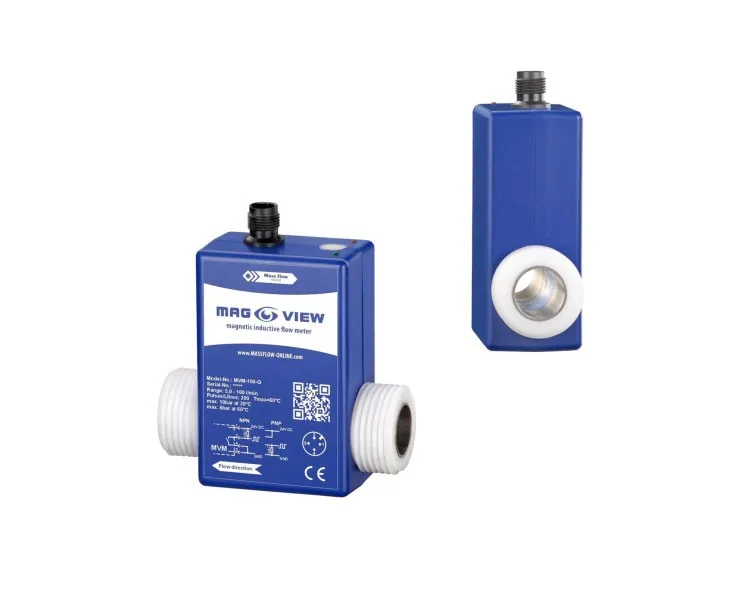

The MAG-VIEW™ series operate on the magnetic inductive principle. The complete absence of moving parts, its interference free operation and the insensitivity with contaminated liquids, makes MAG-VIEW™ the perfect solution even in compact machines with cramped confines.

Advantages

- The ideal solution for interference free operation
- No mechanical wear
- Meters have a long-life cycle
- Can be used in areas where flow sensors with moving parts cannot be applied
- Insensitive against pressure peaks and particles in the medium because of protected transducers
- Wide independence to the inlet and outlet pipes enable installation in compact machines with cramped confines
- No additional pressure drop
- Insensitive with contaminated liquids

Features of Magnetic Flow Meter

- Makes liquid flows visible by

    ◦ Pulse output
    ◦ Blinking LED (red/green)
- No mechanical wear
- No moving parts
- Ease of mounting and operation
- Mounting in any position
- Free pipe cross section

- No additional pressure drop

- Fast response (<100 ms)
- Insensitive with contaminated liquids
- Ideal solution for interference free operation combined with a long-life cycle
- Can be used in areas where flow sensors with moving parts cannot be applied
- Wide independence to the inlet and outlet pipe creates the advantage to be able to install in compact machines with cramped confines

Applications

The fields of application for MAG-VIEW are diverse:
- Can be used in areas where flow sensors with moving parts (paddle wheel, turbine sensors) cannot be applied due to contaminated media
- Sensor is intended for continuously measuring of flow rates or for dosing / batching of electrically conductive liquids with a minimum of 50µS/cm
- Water distribution
- Chemical feed

Flow Ranges
This magnetic flow meter is suitable to measure flows of water and other conductive liquids within a flow range of 0.1 .. 2 lpm.
Model
Min
Max
Output signal starts
MVM-002-Q
0.1 l/min
2 l/min
~ 0.05 l/min
Technical Specifications
Performance
Specifications
Accuracy*
± 1%RD
Repeatability
1%
Rangeability
1:20
Signal output starting from
~ 0.05 l/min
Medium
Water and other conductive liquids with a minimum conductivity of 20 μS/cm (lower conductivity affects the accuracy)
Operating temperature
-10...60 °C (not freezing)
Operating pressure
10 bar(a) (20 °C), 8 bar(a) (40 °C), 6 bar(a) (60 °C)
Nominal diameter
DN 3
Process connection
G3/8'' BSP male thread
Flow indication
 Green LED: flow proportional flashing; red LED: supply voltage
Response time
< 100 ms
* test conditions: Water 23 °C
Mechanical
Specifications
Materials (wetted parts)
Housing: ABS                                                                                                      Electrodes: Stainless Steel 316L                                                                      Process connections: PVDF                                                                            Measuring pipe: PVDF
Grounding rings: Stainless Steel 316L
Protection
IP65
Electrical
Specifications
Frequency output
     Pulse rate
10000 pulses/l
     Resolution
0.1 ml/pulse
     Signal shape
Square wave signal, duty cycle 50:50 (NPN or PNP)
     Signal current
<25 mA
Electrical connection
4-pin-plug M12x1
Power supply
24 VDC±10%
Power consumption
0.6 W
Electrical protection measures
Short-circuit proof, polarity protection
Pin assignment
PIN 1: +U                                                                                                             PIN 2: frequency output NPN or PNP                                                             PIN 3: GND                                                                                                          PIN 4: frequency output NPN or PNP                                                               We recommend using resistors of ~2.2kΩ and 0.25 W for pull-up/pull-down wiring.

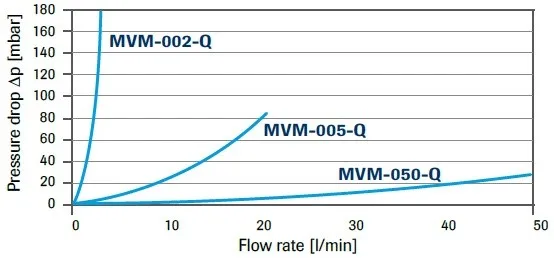

Pressure Drop


Connection to a PLC
