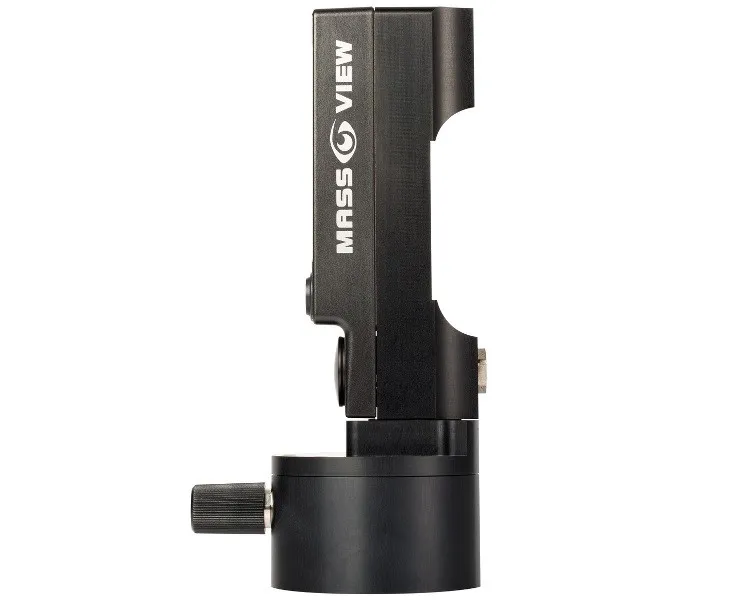

MASS-VIEW Mass Flow Controller (MV-401)

FOB Reference Price:Get Latest Price
$993.28 / Pieces | 1 Piece/Pieces Payment in advance sales condition (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Netherlands
Brand Name:
MASS-VIEW
Model Number:
MV-401
Type:
Mass Flow Controller - Gas
Flow Range:
20-200 [mln/min]
Use:
Measure Direct Mass Flow
Accuracy:
± 2% RD for flow > 50% of max. cap.; lower flows: ± (1% RD + 0.5% FS)
Output:
analog: 0 .. 5 Vdc digital: RS232 / RS485 (Modbus-RTU/ASCII)
Shipping:
within two business days
Shipping weight:
1.4 kg
Supply Ability
Supply Ability:
Shipment: United Parcel Services (UPS)
Packaging & Delivery
Packaging Details
Shipping Weight: 1.4kg
Lead Time :
Fully stocked, despatch will be within 2 days.
Product Description

The MASS-VIEW® series operate on the principle of direct thermal mass flow measurement. A major advantage of using this type of sensor is that the instruments measure direct mass flow, without the need for temperature and pressure correction.

Features of mass flow controller

1. Clear indication in:
    - Actual flow rate (bar graph and value)
    - Desired flow units
    - Type of gas
    - Totalised flow
2. Bright, wide-angle OLED display
3. Free of parallax error
4. Virtually independent of temperature and pressure variations

5. Low pressure drop
6. Wide flow ranges
7. Fast response
8. High accuracy
9. Electronic output:
    - Analog (0 .. 5 Vdc)
    - RS-232 interface (with FLOWBUS)
    - Modbus-RTU/ASCII interface

10. Configurable password protection
11. Alarm and counter functions
12. Relays
13. Multi Gas / Multi Range
14. 4 Pre-installed gases

15. Membrane operated valve

16. High resolution needle valve
17. Digitally calibrated
18. Free software tools

Pre-Installed Ranges
Ranges
Flow range (relative Air)
Range 1
20 mln/min .. 200 mln/min (sccm)
Range 2
20 mln/min .. 100 mln/min (sccm)
Range 3
20 mln/min .. 50 mln/min (sccm)
Pre-installed Gases
Gases
Min. range... max. range
Air, N2, O2 and CO
20 .. 200 mln/min (sccm)
Technical Specifications
Performance
Specifications
Accuracy
± 2% RD for flow > 50% of max. capacity                               ± (1% RD + 0.5% FS) on lower flows
Repeatability
< 0.2% FS typical
Pre-installed gases
Air, N2, O2, CO
Standard calibration gas
Air, other gases are converted using our Fluidat® conversion model which will introduce extra inaccuracy
Rangeability
up to 1:100
Operating pressure
0 .. 10 bar(g) / 0 .. 150 psi(g)
Pressure coefficient
0.2% / bar typical at Air
Operating temperature
0 .. 50°C (32 .. 122°F)
Temperature coefficient
Zero: <0.1%FS/°C, Span: <0.2%RD/°C
Attidude sensitivity
< 0.1% FS
Response time (t63%)
2 s
Min. delta-P
1 bar(d)
Max. delta-P
7 bar(d)
Control accuracy
Less than 0,5-1% RD/bar
Notes:                                                                                                                                                                                                        1. Mass flow units ln/min and SLM refer to normal operating conditions, i.e. 0°C (32°F) and 1013 mbar (14.7 psi)            2. Technical specifications are based on Air at maximum FS                                                                                                         3. All specifications subject to change without notice

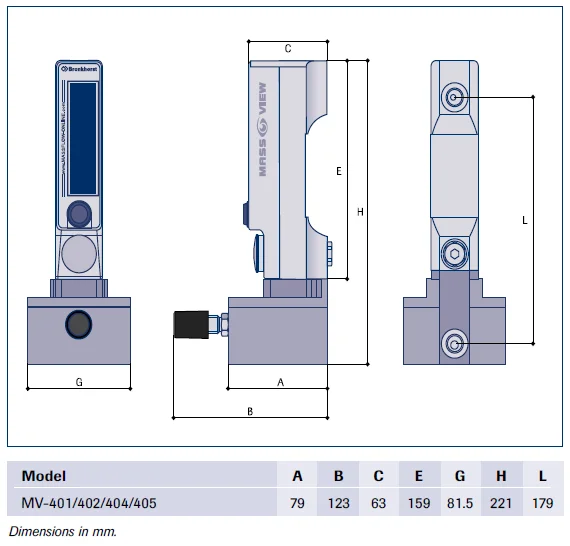

Mechanical
Specifications
Materials (wetted parts)
Meter: Aluminium, Viton                                                           Needle Valve: SS316, Viton, PTFE
Controller: membrane Fiber-reinforced nitrile
Gas connections (in/out)
G 1/4" BSPP female

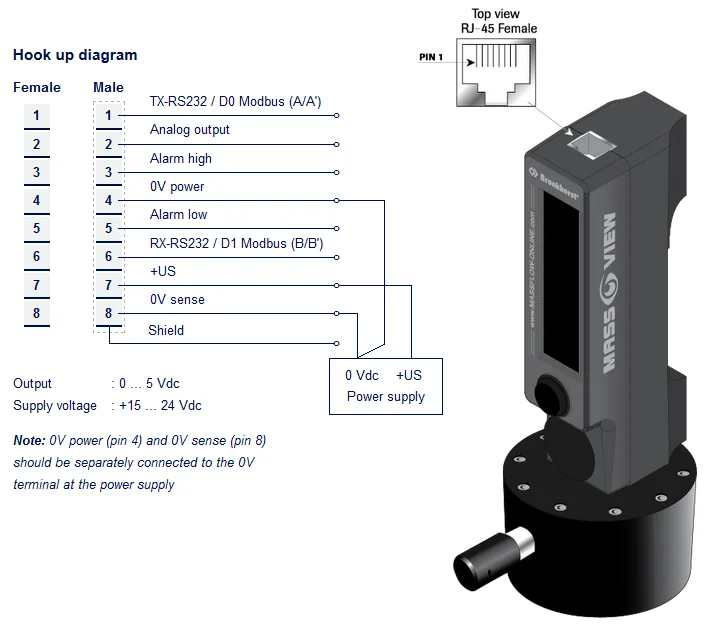

Electrical
Specifications
Electrical connection
8-pin RJ-45 modular jack
Output
Analog: 0 .. 5 Vdc
Digital: RS232 / RS485 (Modbus-RTU/ASCII)
Required supply voltage
15 .. 24 Vdc (± 10%)
Power consumption
Approx. 135 mA
Min. and max. relay contracts
Switching current 0.5 A, 24 Vdc                                              One side grounded (0 Vdc power)
Safety
Specifications
Test pressure
21 bar (a) / 300 psi (a)
Ingress protection
IP-50
Leak integrity (outboard)
< 1 x 10-9 mbar l/s He
EMC
CE declaration

Applications

The fields of application for our mass flow
meters are diverse:
- Burner Control (furnace construction)
- Welding (welding gas monitoring)
- Leak measurements (quality, environment)
- Coating (equipment construction)

- Regulation of gaseous atmospheres
(biotechnology)
- Measurements of gas consumption
(hospitals)
- Test equipment (production maintenance)
- Local preparation of a gas mixture
- Flow rate monitoring (laboratories)

- Cutting (steel sheets)
- Cost centre billing
- Analytical equipment
- Aeration / sparging (food products,
ice cream / edible oils
- Blanketing (food)
- Fermentation (food, biotechnology, pharma)

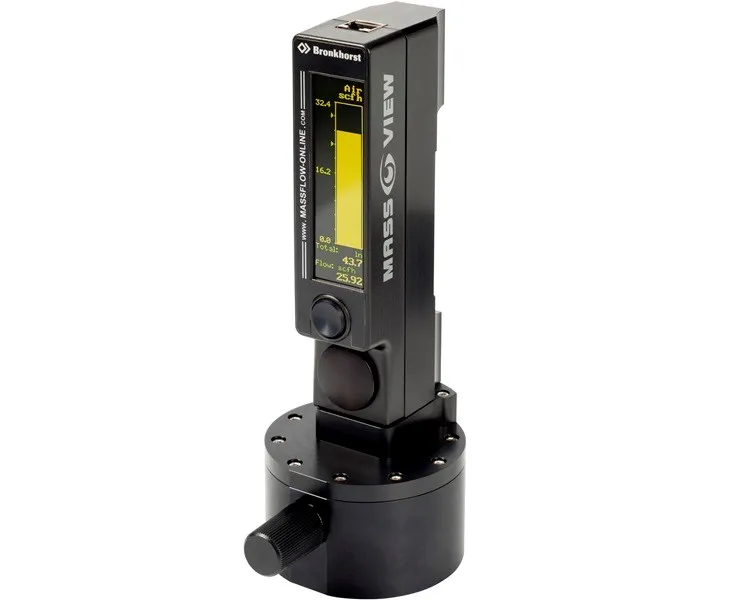

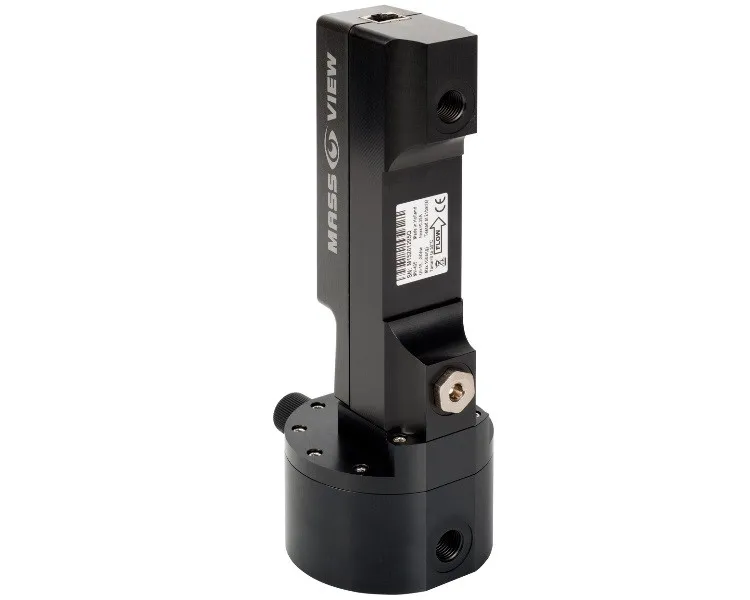

Products Show

Display menu

The 4-way button with center push gives access to a user-friendly menu, e.g. for zero function, for selection of pre-installed gases in pre-installed ranges, setting of engineering units, alarm functions (minimum/maximum/counter limit) and counter functions. Password protection is provided to prevent unauthorizes changes. Above overview of the MASS-VIEW® menu functions illustrates the great versatility of this product line.

Our Service

Customer benefits

- High quality products
- Clear competitive pricing
- Fast delivery
- 24 / 7 open for business
- Highly efficient purchase channel including order tracking
- Easy product selection and ordering
- After Sales Service
- Repair Service & Replacements
- Calibration Service
- Field & Maintenance Service
- Modernisation Service
- Remote Support Service

Our Company

Head office


Production process


Our warehouse


Our team


Packing & Delivery

Orders are shipped from Monday through Friday. Weekend delivery is not available. Products will be sold from stock, unless otherwise stated in the purchasing process. You will be notified when an item is not in stock which will introduce a delay in the delivery time. We do not partially ship orders so when one required item is in stock but another is on a non stock lead time then you should split the order. Once your product(s) has shipped, you will receive a shipment notification via email from our shipper United Parcel Services (UPS). In this email, you will find the tracking number of the shipment.

Delivery Details : ships in 1 - 2 days                                                                                                                                                             Shipping Weight : 1.4kg

Our Certifications

Calibration certificate

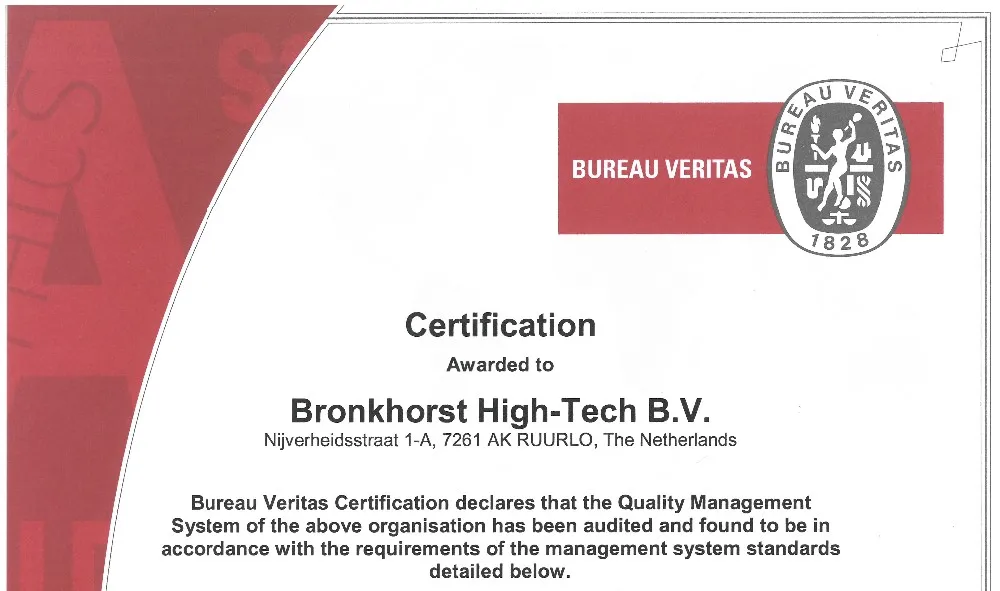

The Bronkhorst Calibration Centre is accredited by the Dutch Accreditation Council (RvA) under registration number K 127. Herewith is certified that our laboratory’s Quality Assurance system, calibration methods and technical competences have been inspected and audited and meet all necessary requirements.

Quality Management System certificate

Bureau Veritas Certification declares that the Quality Management
System of Bronkhorst High-Tech B.V. organisation has been audited
and found to be in accordance with the requirements of the
managment system standards.

FAQ

Q: Calibration interval

A: Mass flow instruments, in fact all process instruments, experience wear from the conditions of the process in which they are installed. Temperature, electronic component tolerance shift, contamination build up over time (even very slight), plus other factors will all contribute to affecting the accuracy of an instrument.
Your instruments should regularly undergo, at a minimum, a calibration check if not a recalibration. But how often? Because the nature of each application is different (conditions, running time, etc.) a calibration can last three years or three months.
Bronkhorst® instruments do not have specified due dates for calibration. Bronkhorst® suggests that our instruments be calibrated every year. However based on the application conditions, and perhaps company quality procedures, each customer must determine when they need to send in an instrument for recalibration.
Properly calibrated instruments will be more accurate, more reliable, help ensure consistency, and help improve production yields.

Q: What communication possibilities can be used with MASS-VIEW?

A: MASS-VIEW® has two communication options:
– FLOWBUS over RS-232
– MODBus RTU or ASCII over RS-485
There is no FLOWBUS over RS-485 communication possible.
FLOWBUS over RS-232 is mostly used to communicate directly to a PC (running FLOWDDE + FLOWPLOT). RS-232 is a point-to-point connection.
MODBus RTU or ASCII is mostly used when a fieldbus is used to connect several instruments to one bus.

Q: Does the counter remember its value when the instrument is powered off?

A: Every few seconds, the MASS-VIEW® writes the countervalue to a non-volatile memory to be sure no data is lost after a powerfailure.

Q: From which measurement value does the counter start to count?

A: The counter function will start counting a measured value when the instrument measures a value of 2% or higher of its capacity. Below 2% nothing is counted.
