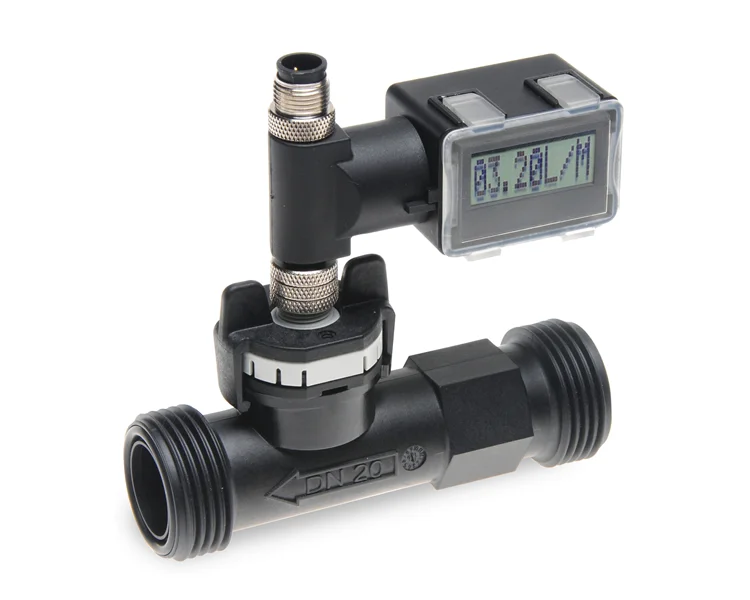

The LIQUI-VIEW Base series operate on the Karman vortex principle and are made for operation on liquids. A great advantage of these vortex flow meters is the absence of moving parts which makes these instruments impervious to deposits of hard water and maintenance free.
Features of Vortex Liquid Flow Meter
- Display features: - Local readout of actual flow rate - Tilting display (180°C) - Bright, wide-angle and easy-to-read display - Makes liquid flows visible by analog output (4..20 mA) - No moving parts makes it: - Impervious to deposits - Maintenance free
- Low pressure drop - Mounting in any position - Wide flow ranges - Fast response - Suitable for dirty water (circulating, well or waste water) - Sustainable product design - Low power consumption - Lightweight and compact
The fields of application for this vortex liquid flow meter are diverse: - Cooling water monitor - Deionized water (RO/DI skids) - Ultra pure water distribution (medicare, biotech, semiconductor, pharmaceutical) - Drinking water
0.9 .. 15 l/min (water-like liquids)
Water and water like liquids. (cooling, well, waste, pure, drinking, heating and tap water) This product is NOT compatible with flammable, corrosive or toxic liquids.
Max. Operating pressure
(for lifetime) 12 bar(a) at +40°C (for lifetime) 6 bar(a) at +85°C
Max. Test pressure
18 bar(a) at +40°C
-20 .. +50°C
Accuracy at >=50%FS
Accuracy at <50%FS
Up to 1:20
Drinking water approval
KTW / W270

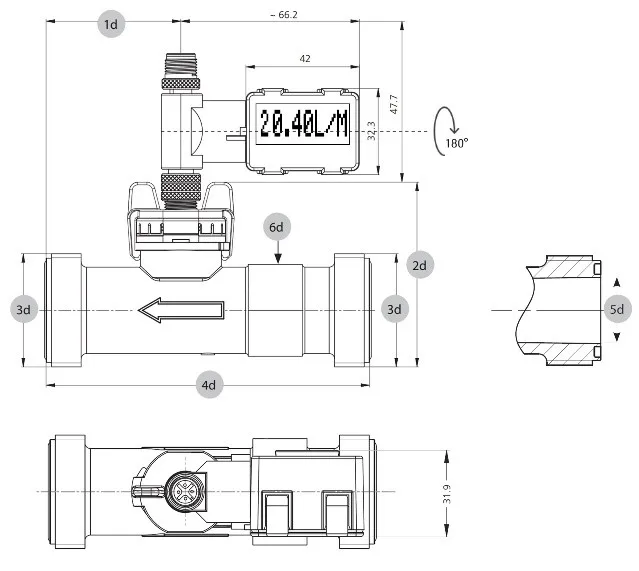

Materials (wetted parts) - Sensor paddle - Body - Seals
ETFE PA6T/6l (40% GF) EPDM
Ingress protection (housing)
<(Uin-10V) / 20mA
M12 x 1
The pressure drop (mbar) calculation formula is (240*Q2)/100 werein Q refers to the flow rate in the unit 'l/min'.
