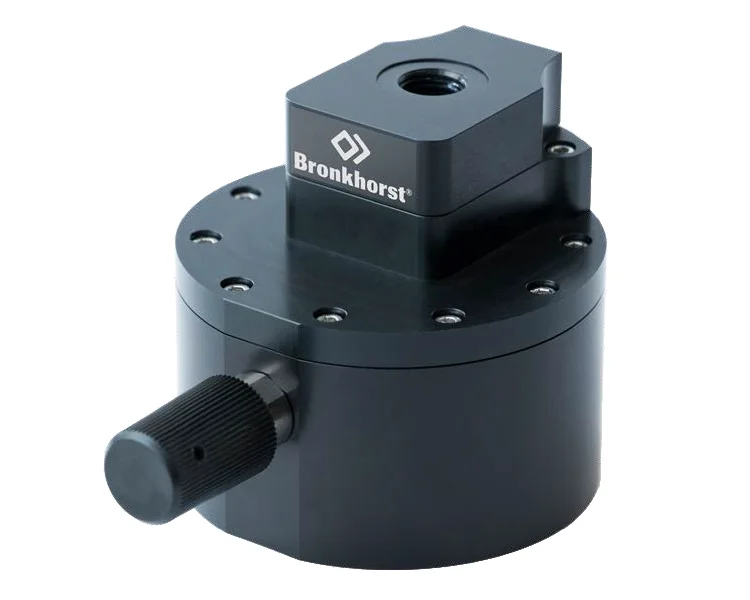

Constant-Flow Controller, lowest flow (FC-001)

FOB Reference Price:Get Latest Price
$499.41 / Pieces | 1 Piece/Pieces Payment in advance sales condition (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Netherlands
Brand Name:
FLOW-CONTROL
Model Number:
FC-001
Type:
Constant-Flow Controller
Pressure sensitivity:
Less than 0,5-1% Rd/bar
Rangeability:
up to 1:100
Supply Ability
Supply Ability:
Shipment: United Parcel Services (UPS)
Packaging & Delivery
Packaging Details
Shipping Weight: 0.8kg
Lead Time :
Fully stocked, despatch will be within 2 days.
Product Description

The new FLOW-CONTROL manual control valves are designed for extremely precise control of a constant flow rate in low flow gas and liquid applications. The desired flow rate is set via the needle valve. Any upstream or discharge pressure variations are automatically compensated by a built-in membrane operated valve to ensure a steady, constant flow. Thanks to its thought-out design and construction, these instrument models do not require any electrical power source.

Features of constant-flow controller

- Compact design
- Ruggedized aluminium housing
- No power required
- Leak-free valve
- Valve pin o-ring guarantees positive shut-off without stem damage
- Self-lubricating orifice liner assures long life
- Valve knob included for easy adjustment

Scope of delivery

- Constant-flow controller
- Packing box
- FLOW-CONTROL Leaflet
- (Optional) fittings

Gas
Capacity
Unit
Air
0.02 .. 0.6
ln/min
N2
Nitrogen
0.02 .. 0.6
ln/min
O2
Oxygen
0.02 .. 0.55
ln/min
CO
Carbon Monoxide
0.02 .. 0.6
ln/min
Ar
Argon
0.04 .. 0.5
ln/min
CO2
Carbon Dioxide
0.02 .. 0.45
ln/min
CH4
Methane
0.01 .. 0.8
ln/min
C3H8
Propane
0.01 .. 0.45
ln/min
N2O
Nitrous Oxide
0.02 .. 0.45
ln/min
C4H10
Butane
0.01 .. 0.4
ln/min
Liquid
Capacity
Unit
Water
3 .. 20
ml/min
Technical Specifications
Performance
Specifications
Pressure sensitivity
Less than 0,5-1% Rd/bar
Rangeability
Up to 1:100
Operating pressure
0 .. 10 bar(g) / 0 .. 150 psi(g)
Operating temperature
0 .. 70°C / 32 .. 158°F
Min. delta-P
1 bar(d)
Max. delta-P
7 bar(d)
Mechanical
Specifications
Materials (wetted parts)
   - Body
   - Needle valve
   - Membrane
                                                                                              Aluminium, Viton®, Stainless Steel
Brass, SS316, Fluorisint®, Bruna N
Fiber-reinformed Nitrile
Gas connections (in/out)
G 1/4" BSPP female
Closing
Clockwise
Safety
Specifications
Test pressure
21 bar (a) / 300 psi (a)
Ingress protection
IP65
* Note:
- All specifications subject to change without notice.
- Technical specifications are based on Air at maximum FS
- Excessive force used to achieve positive shut-off can deform or score the sealing surface in the valve.

Applications

The fields of application for FLOW-CONTROL are diverse:
- Constant flow control of gases
- Constant flow control of liquids
- Process control
- Gas/liquid sampling
- Inert gas/liquid blanketing
- Pressure regulator of gas and liquids
- Maintaining constant flow rate
